The MD‐700 has been specifically developed for humidity control in particle measurement and aerosol analysis applications. In order to minimise particle losses, a laminar sample flow should be maintained through the flow path of the dryer. The MD‐700 addresses these performance needs while providing the moisture removal necessary to make accurate measurements across a wide range of flow rates. All moisture is removed in the vapor phase with a purge gas flow.
- Home
- Products & Equipment
- Perma Pure Monotube Dryer 700 (MD-700)
Process Gas Monitoring, Continuous Emission Monitoring (CEMS), Source / Stack Emission Monitoring

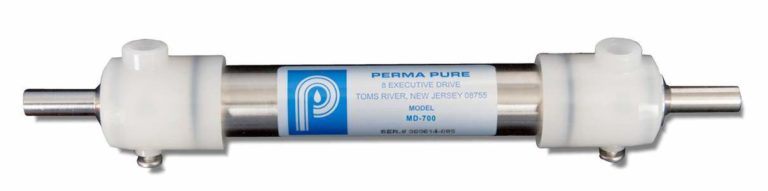

Perma Pure Monotube Dryer 700 (MD-700)
The MD‐700 has been specifically developed for humidity control in particle measurement and aerosol analysis applications.
SKU
MD-700
Price
We will finalise a price once we receive your enquiry.
Description
Features & Applications
Downloads
- Low particle losses due the large diameter 17mm (0.700”) Nafion tubing used in the design
- Eliminates the need for heating the sample gas stream, preserving the volatile particulate component
- Grounded Stainless-Steel Tube and Shell Construction eliminates buildup of static electricity and provides long service life outdoors
- Straight Configuration in 6,12, 24, and 48 inch versions minimises turbulent flow that causes losses
- Dryer is continuously regenerating, eliminating the need to repeatedly replace desiccant
- Designed to be used with the vacuum reflux purge gas method where no dry or instrument air is available.
