Air Quality Monitoring

APEX Particle Sizing Cyclone Kits

PM10/PM2.5 Set combines the in-stack measurement of particulate matter (PM) equal to or less than an aerodynamic diameter of nominally 10 (PM10) and 2.5 (PM2.5 ) microns from stationary sources.

SKU
PM2-K; PM10-K; PM2.5-10K
Price

We will finalise a price once we receive your enquiry.

Purchase from $6,961.64 AUD
Rent from $1,392.33 AUD per month
  • Description

  • Features & Applications

PM10/PM2.5 Set combines the in-stack measurement of particulate matter (PM) equal to or less than an aerodynamic diameter of nominally 10 (PM10) and 2.5 (PM2.5 ) microns from stationary sources. The sampling train and operation are identical to Method 201A except that the PM2.5 cyclone is inserted between the PM10 cyclone and the 47mm filter. The PM10 cyclone collects particulate matter greater than PM10 while the PM2.5 collects PM less than PM10 and greater than PM2.5. The in-line filter collects PM less than PM2.5.

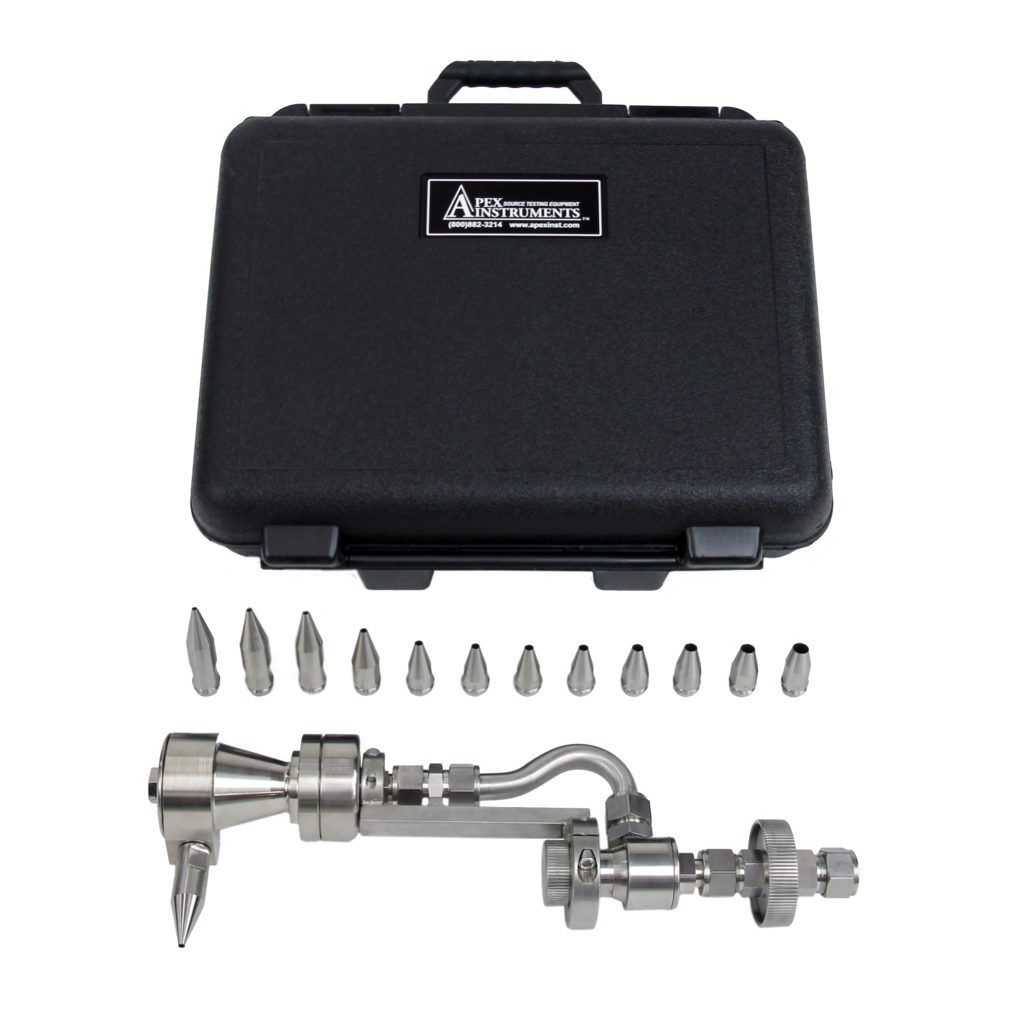

PM2.5K Cyclone Kit includes:

  • Threaded
  • Stainless Steel
  • 12 nozzles (PM2-NS) 44-22 filter holder (SFA-47)
  • Anti-seize
  • Case

PM 10K Cyclone Kit includes:

  • Threaded
  • Stainless Steel
  • 12 nozzles (PM10-NS) 47-mm filter holders (SFA-47)
  • Anti-seize
  • Case

PM2.5/10 Cyclone Kit includes:

  • PM10 Kit
  • PM 2.5 Cyclone Body
  • Adaptors
  • Anti-seize
  • Case
