Air Quality Monitoring

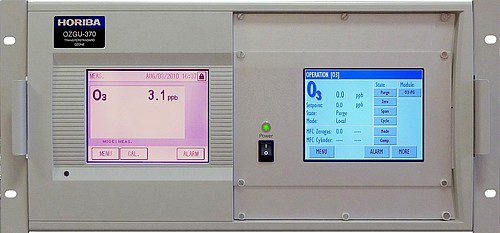

OZGU-370SE Ozone Generator

The calibration unit OZGU-370SE is designed for the dynamic and continual manufacture of zero and span gas to perform all ongoing quality control procedures according EN 14625.

SKU
N.A.
Price

We will finalise a price once we receive your enquiry.

  • Description

  • Features & Applications

The calibration unit OZGU-370SE is designed for the dynamic and continual manufacture of zero and span gas to perform all ongoing quality control procedures according EN 14625. Transfer-standard OZGU-370SE is based on well proven Analyzer APOA-370 with integrated span gas generation unit (ASGU-370 Electronic). This Span gas unit is able to provide ozone gas to an 2nd Ozone monitor. The actual concentration is measured by the type approved measurement cell of the transfer standard.

  • Comfortable operation via 2 big illuminated Touch-Screen-Displays or remote software enables easy external handling
  • High flexibility through 20 free selectable span points
  • High flexibility through free definable cycles
  • High flexibility through free definable sequences
  • Programmable timer allows time delayed start of calibration process
  • Optional internal data logger stores raw values from calibration procedure for reporting with included evaluation software
