Name: MRU SWG CEM Continuous Emission Monitor Series
Brand: MRU
SKU: SWG-CEM

Price

We will finalise a price once we receive your enquiry.

The SWG 100 CEM (Continuous Emission Monitoring) offers you a cost-effective, reliable system for emission and combustion monitoring. With simultaneous infrared analysis of up to 3 flue gas components is possible. Furthermore, it is possible to measure 3 more components simultaneously electrochemically.
Alternatively, up to 5 components may be measured simultaneously on an electrochemical basis.
The electrochemical sensors are O2 – CO – NO – NO2 – SO2.

The SWG 200 CEM (Continuous Emission Monitoring) offers you a cost-effective, reliable system for emission and combustion monitoring. This high end 24/7 gas analyser is used for continuous flue gas and emission monitoring.

The SWG 300 CEM (Continuous Emission Monitoring) offers you a reliable Emission-Monitoring System, even for dirty acid mist applications.

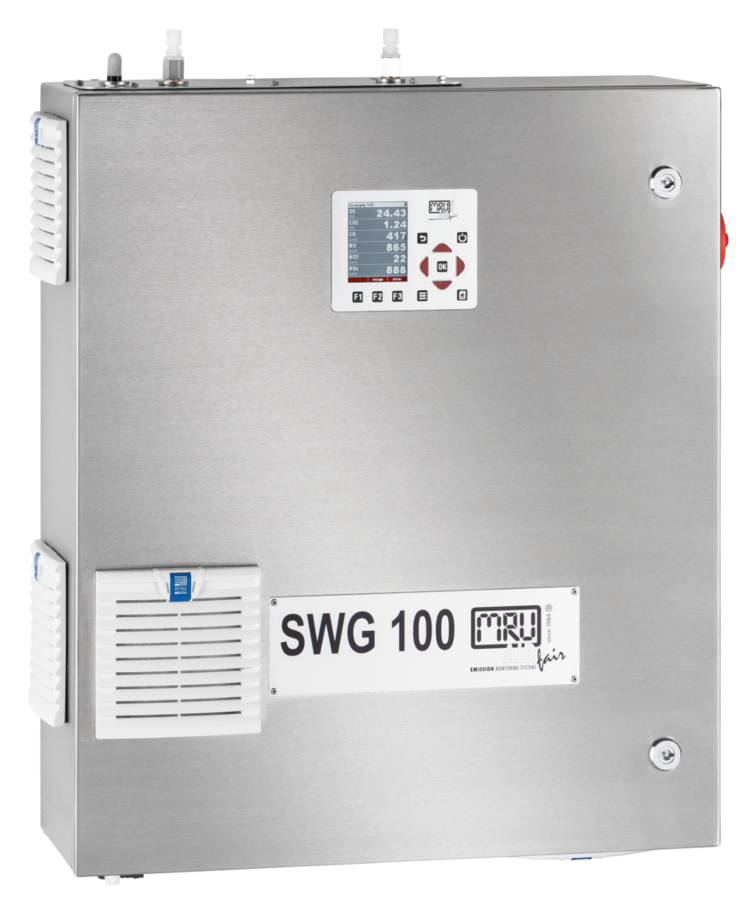

SWG 100 CEM

Up to 6 gas simultaneous measurement
Advanced sample gas preparation for fast and reliable measurements
Simple installation, ready to run delivery and easy to maintain.
Heated gas sampling probe

SWG 200 CEM

Use of optimised NDIR technology with improved accuracy and without zero offset
O₂ measurement with an electrochemical or a paramagnetic sensor
Automatic zeroing using clean ambient air
Automatic calibration for up to 4 gas cylinders
Double-stage Peltier gas cooler with 2 automatic condensate pumps
Cold/dry gas sampling with low sample flow volume of only 1 l/min

SWG 300 CEM

Complete CEM system for emissions monitoring
The multi-component gas analyser SWG 300-1 is based on extractive, cold-dry method
The SWG 300 can measure up to 8 gas components, using MRU optimized NDIR technology, with improved accuracy and without zero offset.
Oxygen analysis using, paramagnetic cell or “long-life” electro-chemical cell.
