Air Quality Monitoring

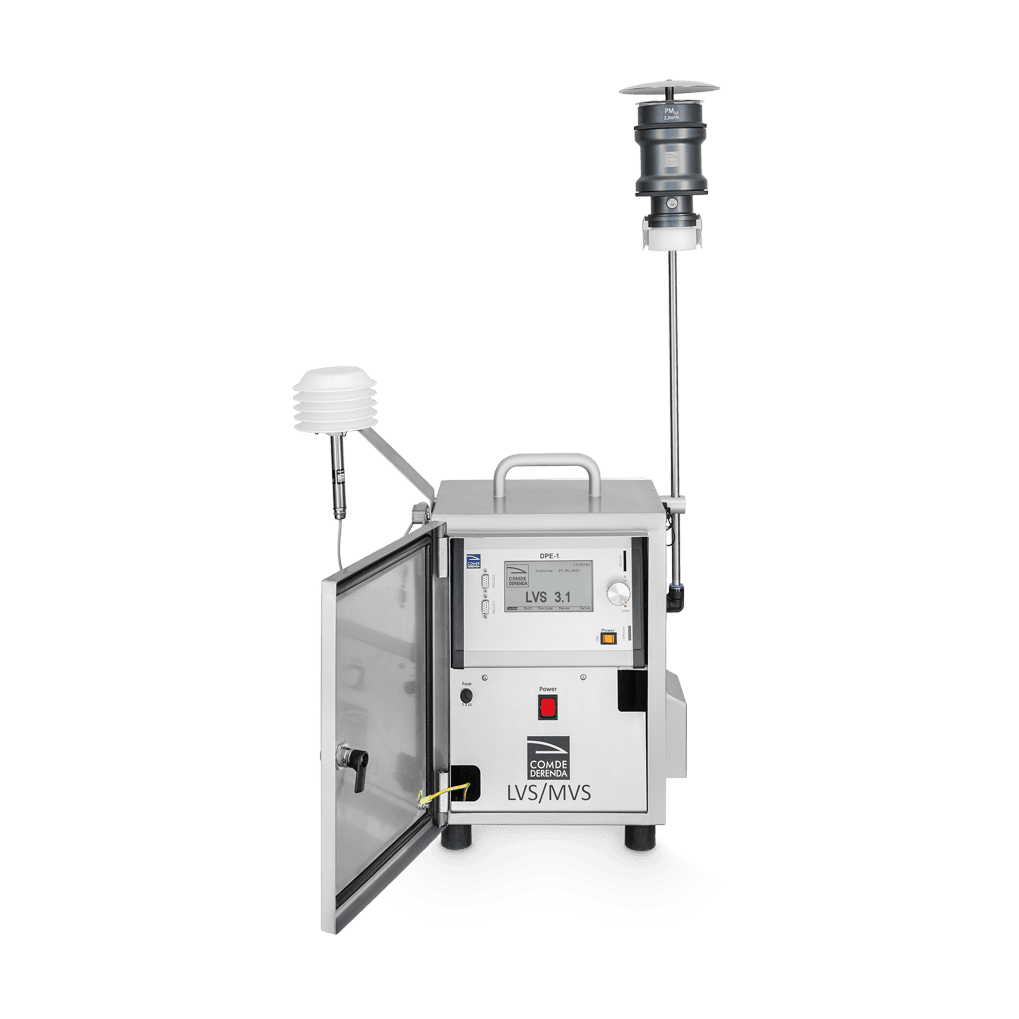

LVS/MVS Low and Mid Volume Samplers

The low and medium volume samplers LVS and MVS collect fine particulate matter on sampling filters according to EN 12341:2014 (PM10 and PM2.5) and US-EPA methods.

SKU
DER=LVS DER-MVS
Price

We will finalise a price once we receive your enquiry.

Purchase from $8,500.00 AUD
  • Description

  • Features & Applications

  • Downloads

The low and medium volume samplers LVS and MVS collect fine particulate matter on sampling filters according to EN 12341:2014 (PM10 and PM2.5) and US-EPA methods. For this purpose, a vacuum pump draws in ambient air, and the sampler fractionates the airborne fine particles in a sampling inlet. The air containing the desired fine particulate fraction then passes through the filter, where the particles are collected and made available for subsequent gravimetric assessment or analysis. The volumetric flow rate is measured with an orifice plate and electronically adjusted with an accuracy of ≤ 2%.

  • LVS up to 3.5 m³/h and MVS with maximum volumetric flow rate of approx. 5.5 m³/h
  • Stainless steel cabinet with lockable door
  • Control unit with electronic modules, SD card reader and RS-232C interface
  • Vacuum pump and orifice flow monitoring
  • Sampling inlet (for particulate matter fractions PM10, PM2.5 or PM1; optional)
  • Intake tube, diameter 12 mm
  • Temperature and humidity sensors
