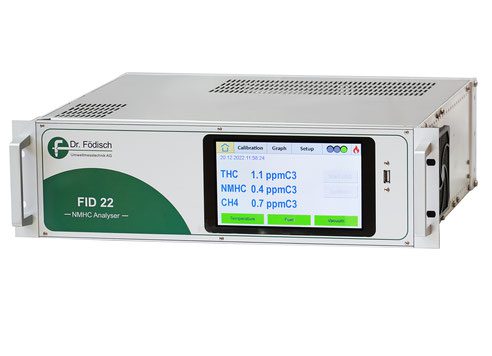

Dr. Födisch FID NMHC Analyser

The FID 22 NMHC (rack variant) analyser is used for continuous monitoring of the content of hydrocarbons (THC)/ Total Organic Carbon (TOC), Methane (CH4) and Non-Methane Hydrocarbons (NMHC) in gases from industrial plants (emissions) or environments (immissions).

SKU
iFiD-Rack
Price

We will finalise a price once we receive your enquiry.

Purchase from $38,610.00 AUD

  • Description

  • Features & Applications

  • Downloads

The FID 22 NMHC (rack variant) analyser is used for continuous monitoring of the content of hydrocarbons (THC)/ Total Organic Carbon (TOC), Methane (CH4) and Non-Methane Hydrocarbons (NMHC) in gases from industrial plants (emissions) or environments (immissions).

The sample gas is extracted at the measuring point and passed through the analyser (extractive measurement).

A flame ionization detector (FID) is used to measure the hydrocarbons (THC). A second sample stream is fed with sample gas via a catalyst and the methane concentration is calculated (CH4). The NMHC value is calculated from these two concentration values.

  • Complies with EN 12619 and EN 13526 standards for emission monitoring
  • Real dual chamber
  • Standard heating temperature about 190 °C, optional up to 300 °C
  • Oxygen cross-sensitivity < 2 %
  • Hydrogen consumption (fuel) about 70 ml/min
  • Combustion air via internal catalytic converter
  • Automatic combustion air switch-off
  • User-friendly 7″ touch display and software
  • Graphic display of THC, CH4 and NMHC concentration at once
  • Flow measurement and pressure compensation function integrated
  • Single range – no switch between ranges
  • Internal datalogging and USB drive flash
  • TCP/IP interface for easy datatransfer
  • Remote control function via Virtual Network Com-tuting (software: FID 22 Master)
