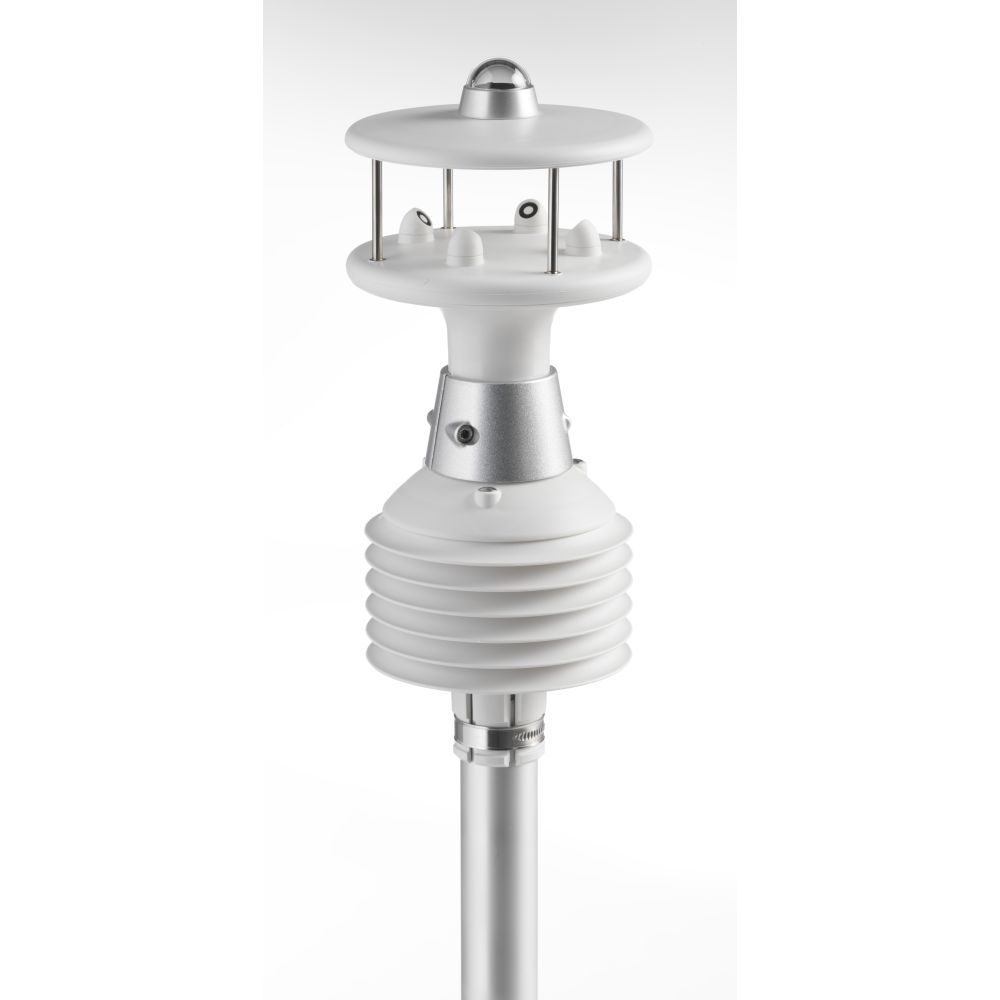

Delta OHM HD52.3D Compact Weather Sensor

The instruments of the series HD52.3D are 2 axes ultrasonic static anemometers for measuring Wind speed and direction, U-V Cartesian components of wind speed, Wind Gust, and optionally Relative Humidity and Temperature, Global Solar Radiation, Barometric pressure and Rainfall.

SKU
HD523
Price

We will finalise a price once we receive your enquiry.

Purchase from $8,162.00 AUD
Rent from $1,632.40 AUD per month

  • Description

  • Features & Applications

  • Downloads

The instruments of the series HD52.3D are 2 axes ultrasonic static anemometers for measuring Wind speed and direction, U-V Cartesian components of wind speed, Wind Gust, and optionally Relative Humidity and Temperature, Global Solar Radiation, Barometric pressure and Rainfall.

All models are equipped with a magnetic compass. The avarage of wind speed and direction over a period configurable up to 10 mins is calculated. RS232, RS485, RS422 and SDI-12 serial interfaces are available with NMEA, MODBUS-RTU and SDI-12 communication protocols. All versions have two analog outputs, both for wind speed and for direction.

  • No moving parts minimizes maintenance;
  • High sensitivity for detecting very low speeds, which are not detectable by traditional methods;
  • The low power of the instrument allows installation in remote sites, with power from solar panel and battery;
  • The heating option prevents the accumulation of snow and ice from forming, allowing accurate measurements in all environmental conditions;
  • Fast and easy installation, alignment facilitated by built-in compass;
  • The available measurement options join together in one single, compact and lightweight instrument, the main variables of interest in weather stations;
  • MODBUS-RTU output allows instrument networking.
