Name: GRIMM High-End Condensation Particle Counter Series
Brand: GRIMM
SKU: 5416/5417-HECPC

Price

We will finalise a price once we receive your enquiry.

The GRIMM High-End Condensation Particle Counter products include the following models:

5416 High-End Condensation Particle Counter
Precise nanoparticle counting instrument with the option to operate as a fully-equipped SMPS system.

5417 High-End Condensation Particle Counter
Precise nanoparticle counter optimised for use as PSMPS thanks to extended SMPS+C capabilities. It features an integrated DMA voltage controller and two switchable sample inlet flows.

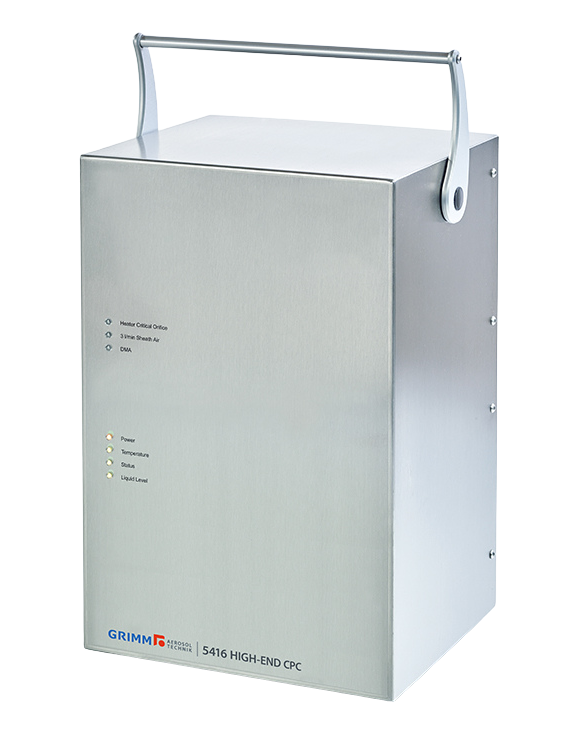

5416 High-End Condensation Particle Counter

Precise nanoparticle counting: n-Butanol based CPC, D50 = 4.0 nm, Droplet size control, Single count mode (150,000 particles/cm³) and Photometric mode (up to 10⁷ particles/cm³)
Internal pumps for sample and sheath air
SMPS+C capability: Integrated DMA controller, 3.0 l/min sheath air flow, 0.3 l/min sample air flow
Saturator shutter
Analog input for optional meteorological sensors
Wide range power supply: 90 … 264 VAC, 47 … 63 Hz, 80 … 130 W

5417 High-End Condensation Particle Counter

Precise nanoparticle counting: n-Butanol based CPC, Droplet size control, Continuous condensate drain, Single count mode (150,000 particles/cm³) and Photometric mode (up to 10⁷ particles/cm³)
Internal pumps for sample and sheath air
Extended SMPS+C capability: Integrated DMA controller, Two sheath air flows: 3.0 or 10.0 l/min, Two switchable sample air flows: 0.3 or 0.6 l/min
Saturator shutter
Continuous condensate drain with micro pump
Analog input for optional meteorological sensors
Wide range power supply: 90 … 264 VAC, 47 … 63 Hz, 80 … 130 W
