Ambient Air Monitoring

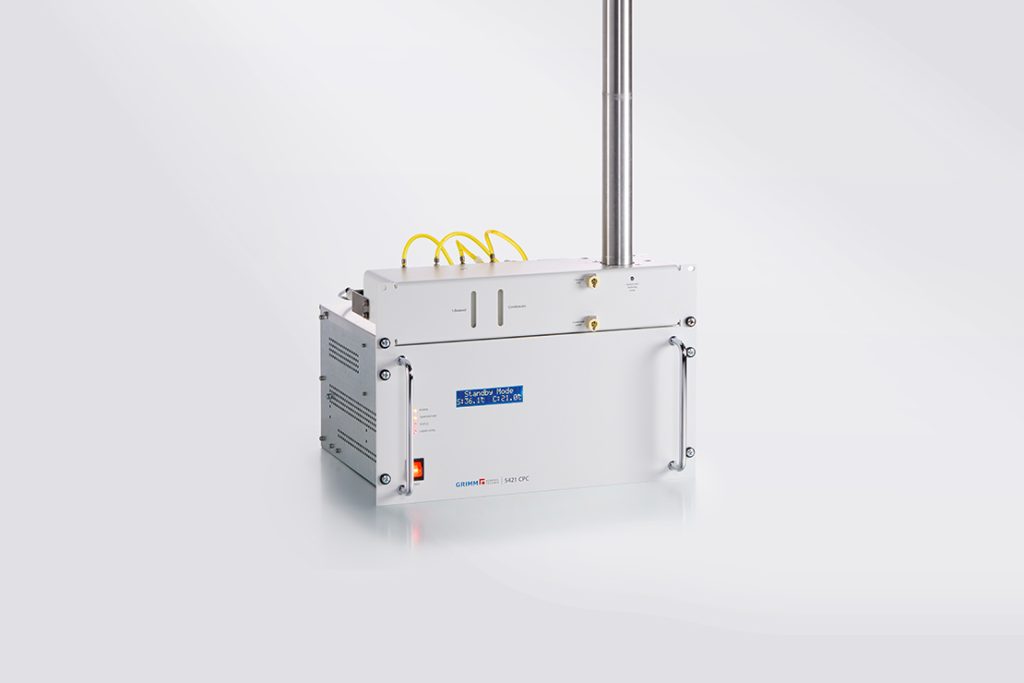

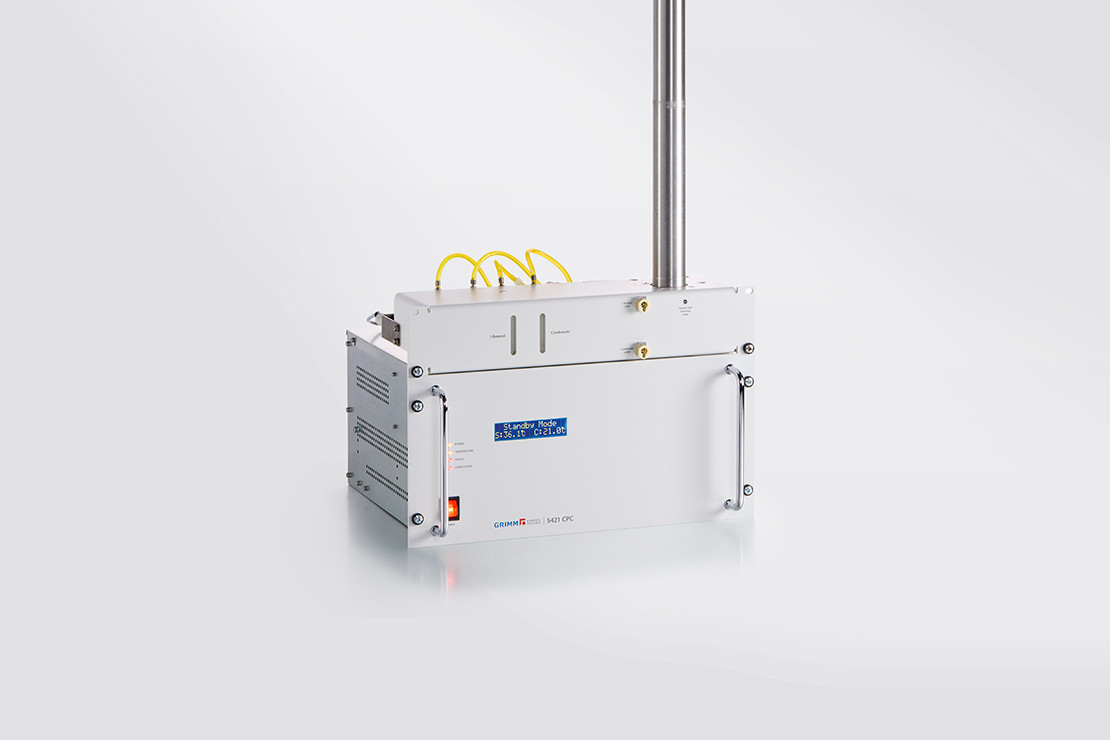

GRIMM CPC 5421 Condensation Particle Counter

CPC in 19” rack design available as model 5421-TR-CEN with a D50 of 10 nm for full compliance with the EN16976 for 24/7 real-time monitoring of UFP in ambient air, or the standard calibrated model 5421 with a D50 of 4 nm.

SKU
CPC5421
Price

We will finalise a price once we receive your enquiry.

  • Description

  • Features & Applications

  • Downloads

CPC in 19” rack design available as model 5421-TR-CEN with a D50 of 10 nm for full compliance with the EN16976 for 24/7 real-time monitoring of UFP in ambient air, or the standard calibrated model 5421 with a D50 of 4 nm.

  • Precise nanoparticle counting: n-Butanol based CPC
    • Standard version: D50 = 4.0 nm
    • CEN-compliant version to EN 16976: D50 = 10 nm
  • Droplet size control
  • Single count mode up to 150,000 particles/cm3
  • Photometric mode up to 107 particles/cm3
  • Integrated sample pump
  • Flow rate controlled by critical orifice
  • Saturator shutter
  • Long-term butanol and condensate tanks
