Ambient Air Monitoring

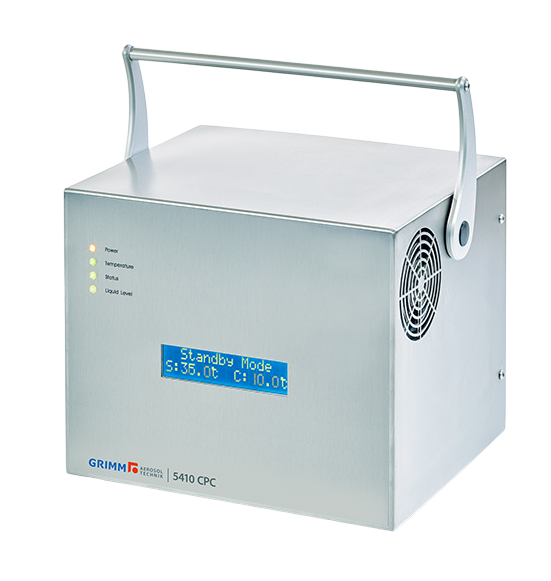

GRIMM 5410 Basic Condensation Particle Counter

Compact CPC for nanoparticle counting with optimized detection efficiency and response time.

SKU
5410-BCPC
Price

We will finalise a price once we receive your enquiry.

  • Description

  • Features & Applications

  • Downloads

Compact CPC for nanoparticle counting with optimised detection efficiency and response time.  Different calibrations possible, e.g. for real-time monitoring of UFP in ambient air according to CEN draft standard prEN 16976:2023.



  • Precise nanoparticle counting: n-Butanol based CPC, D50 = 4.0 nm, Droplet size control, Single count mode (100,000 particles/cm3) and  Photometric mode (up to 107 particles/cm3)
  • Sample flow rate controlled by critical orifice: External vacuum required
  • Saturator shutter
  • Continuous condensate drain with micro pump
  • Analog input for optional meteorological sensors
  • Wide range power supply: 90 … 264 VAC, 47 … 63 Hz; 80 … 130 W
