This stand-alone environmental dust monitor detects airborne particles in real time without the loss of the semi-volatile compounds. It is designed for mobile industrial use and allows simultaneous measurement of the dust mass fractions PM10, PM2.5, PM1 and also the particle size distribution in 31 size channels.
- Home
- Products & Equipment
- GRIMM EDM365 Environmental Dust Monitor for PM Monitoring
Air Quality Monitoring

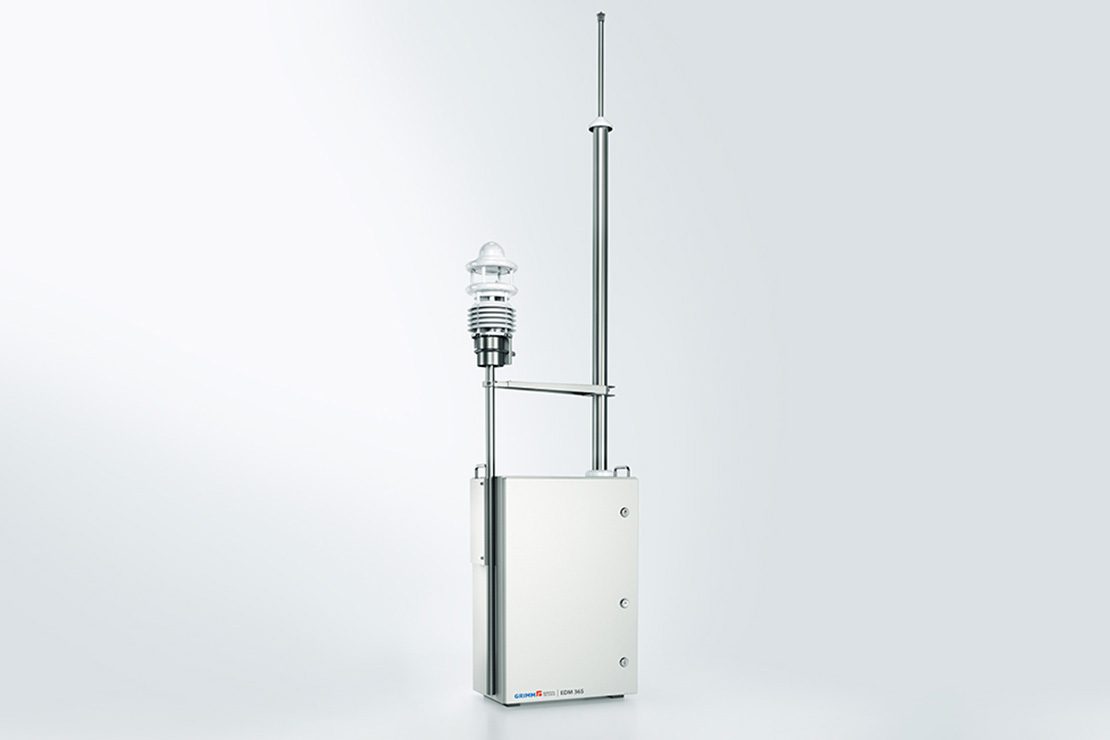

GRIMM EDM365 Environmental Dust Monitor for PM Monitoring
This stand-alone environmental dust monitor detects airborne particles in real time without the loss of the semi-volatile compounds.
SKU
EDM365
Price
We will finalise a price once we receive your enquiry.
Purchase from $40,000.00 AUD
Description
Features & Applications
Downloads
- Equivalent to norms US-EPA, UK-MCERTS, CN-CMA
- Weather-protected system in powder-coated stainless steel housing
- Continuous use in harshest environments
- Real-time monitoring of PM values (PM10, PM2.5, PM1) and particle number in 31 size channels
- Fully automatic monitoring system with remote access
- Extremely energy-efficient, low maintenance, no consumables
- No loss of semi-volatile compounds
- No radioactive source, insensitive to vibrations
- Versatile data acquisition and communication (GSM data logger)
- Self-test of all optical and pneumatic components for high quality standards
- Purge air for protecting laser and detector in optical cell
- Temperature and relative humidity sensors
- Total inlet flow analysed in optical cell
- Excellent counting statistics and reproducibility at low and high dust concentrations
