Ambient Air Monitoring, Continuous Emission Monitoring (CEMS)

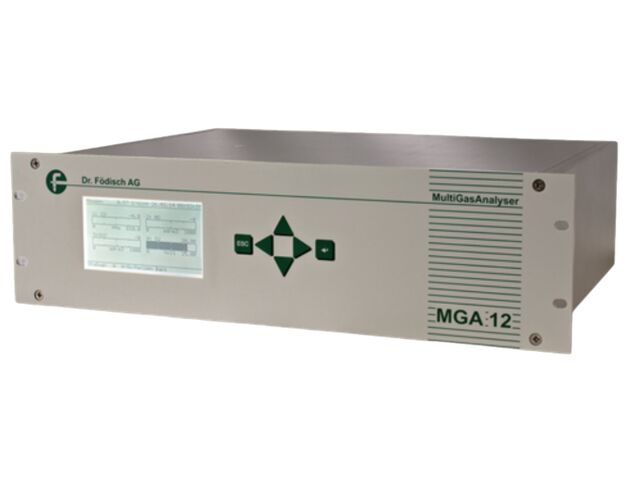

Dr. Födisch MGA 12 Series Oxygen Analyser

The Dr. Födisch MGA 12 is an extractive gas analyser for continuous measurement of oxygen in flue gases and process gases.

SKU
MGA12-Ex
Price

We will finalise a price once we receive your enquiry.

  • Description

  • Features & Applications

  • Downloads

The Dr. Födisch MGA 12 is an extractive gas analyser for continuous measurement of oxygen in flue
gases and process gases. The multi gas analyser MGA 12 can be applied as single oxygen measuring device being rather independent from process condition.

The Dr. Födisch MGA 12 Ex is an extractive gas analyser for continuous measurement of oxygen in
potentially explosive atmospheres. The multi gas analyser MGA 12 Ex can be applied as single oxygen measuring device in potentially explosive atmospheres.

MGA 12

  • Limit value signalling and measuring range change-over
  • Two separated gas paths possible
  • Local diagnosis of the system state
  • Display of bar diagram
  • Flow control as well as display of flow rate
  • Control of a back-purging probe (interval and pulse time)
  • Control of zero point drift
  • Low maintenance requirement

MGA 12 Ex

  • Protective principle Ex d
  • Pressure-resistant gas path up to 3 bar
  • Explosive gases can be passed through in a closed loop
  • Integrated zero gas valve for zero point correction
  • All gas-contacting elements are made of metal
