Source / Stack Emission Monitoring

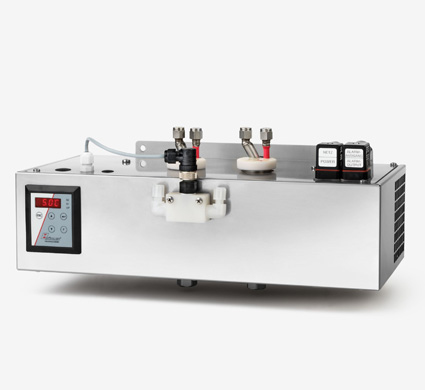

Buhler TC-Double X2 Sample Gas Cooler Series

Many applications require equipment which can be used in explosive areas.

SKU
BU-TC-Double-X2
Price

We will finalise a price once we receive your enquiry.

  • Description

  • Features & Applications

  • Downloads

Many applications require equipment which can be used in explosive areas. This is where the TC-Double X2 series provides solutions for Zone 2 or Class I, Division 2.

  • ATEX and IECEx Zone 2 approval
  • FM C-US approval for Class I, Division 2
  • One gas path
  • Heat exchanger made from stainless steel, Duran glass or PVDF
  • Adjustable outlet dew point and alarm thresholds
  • Rated power 270/310 kJ/h, 40 °C/60 °C version respectively rated power 256/294 Btu/h, 104 °F/140 °F version
  • Max. ambient temperature 60 °C / 140 °F
  • Dew point stability 0.1 °C / 0.2 °F
  • Status display and output
  • Cooling block temperatures display
  • Moisture detector connection, analog output, filter, and
  • Peristaltic pump optional
